CISCO X2-10GB-LR FİBER SFP GBIC CONVERTER ÇEVİRİCİ TWIN

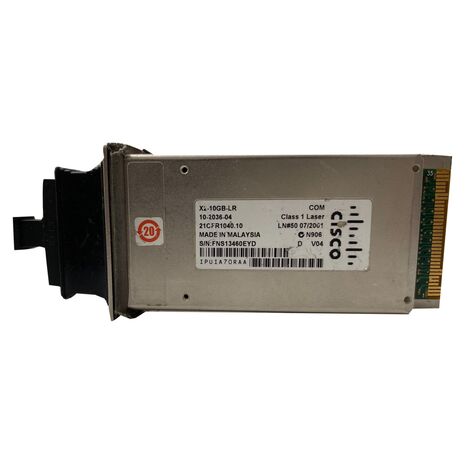

Cisco Systems X2-10GB-LR 10GBASE-LR X2 Module |
X2-10GB-LR Overview
The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).
Quick Specs
Table 1 shows the Quick Specs.
Cisco X2 | Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz*km) | Cable Distance |
Cisco X2-10GB-LR | 1310 | SMF | G.652 | none | 10 km |
Table 2 Optical Transmit and Receive Specifications.
Product | Type | Transmit Power (dBm)* | Receive Power (dBm)* | Transmit and Receive Wavelength Range (nm) | |||
Maximum | Minimum | Maximum | Minimum | Transmit | Receive | ||
Cisco X2-10GB-LR | 10GBASE-LR 1310 nm SMF | 0.5 | -8.2 | 0.5 | -14.4 | 1260 to 1355 | 1260 to 1565 |
Get More Information
Do you have any question about the X2-10GB-LR?
