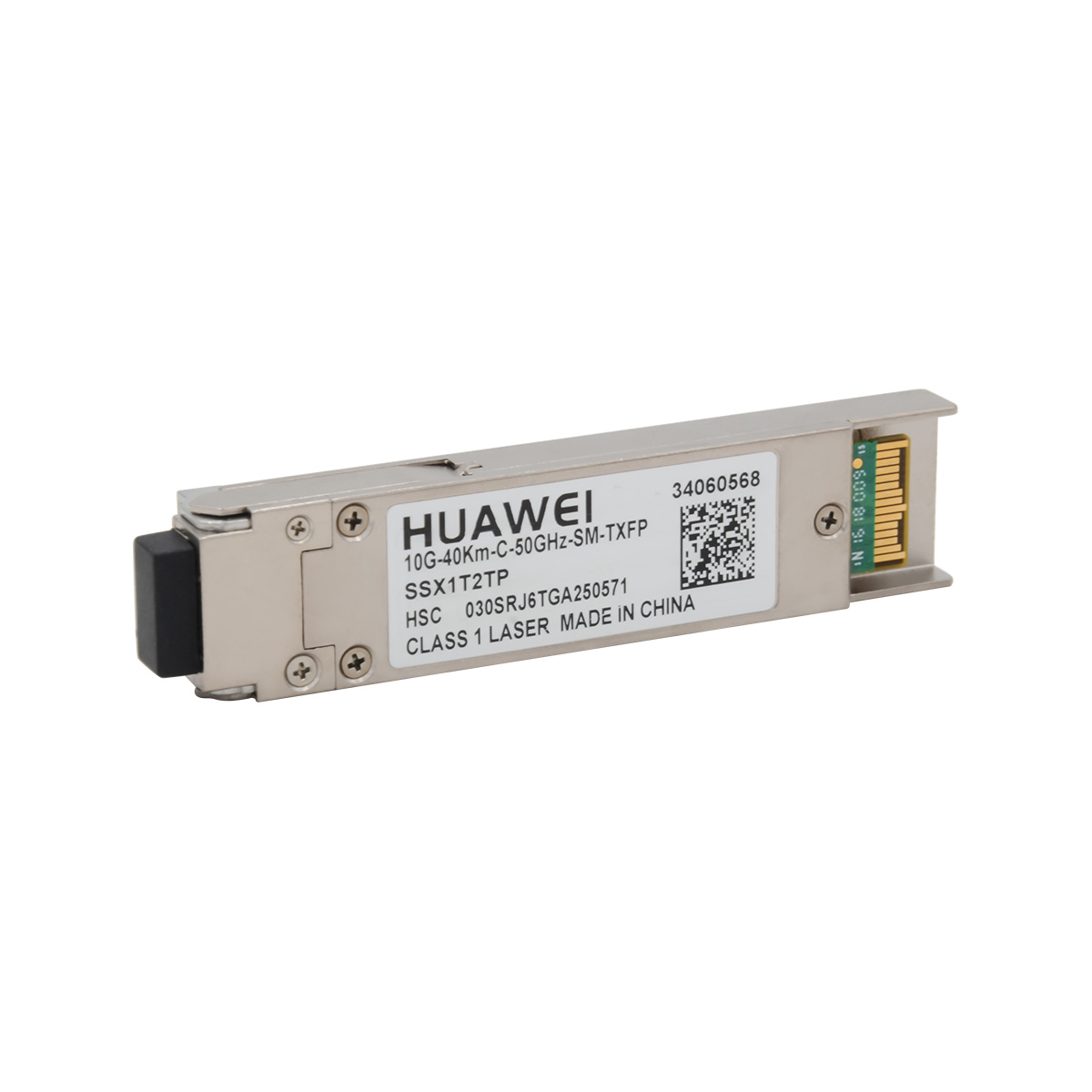

Orjinal Huawei QSFP DWDM 10G-40km-C-50Ghz-SM-TXFP-SSX1T2TP
10G DWDM C band 50GHz 40km SM TXFP HSC
11300Mb/s-C band 50GHz spacing 80 channels optical wavelength tunable-LC-40km(SMF)
SSX1T2TP
Bulk pack
Apply to Huawei OSN8800 series line WDM side board, typically NS2, ND2, NQ2, NO2
| WDM-side pluggable optical module specifications (tunable wavelengths) | |||
| Parameter | Value | ||
| Optical Module Type | 10 Gbit/s Multirate 40km XFP | ||
| Line code format | NRZ | ||
| Optical source type | SLM | ||
| Target transmission distance | 40 km (24.9 mi.) | ||
Transmitter parameter specifications at point S |
|||
| Operating wavelength range (nm) | 1530 to 1565 | ||
| Maximum mean launched power(dBm) | 2 | ||
| Minimum mean launched power(dBm) | -1 | ||
| Minimum extinction ratio(dB) | 8.2 | ||
| Minimum side mode suppression ratio | 30 | ||
| Eye pattern mask | G.959.1-compliant | ||
| Receiver parameter specifications at point R | |||
| Receiver type | PIN | ||
| Operating wavelength range(nm) | 1260 to 1605 | ||
| Receiver sensitivity, EOL(FEC on)(dBm) | -14 | ||
| Minimum receiver overload(dBm) | -1 | ||
Marka:
Huawei
